Object List
Object List
User assets are listed in the Object list. It’s a small window on the map which can be resized and moved within the screen.
You can also collapse and expand the Object list when needed. To do this, simply click on the arrow sign in its header.

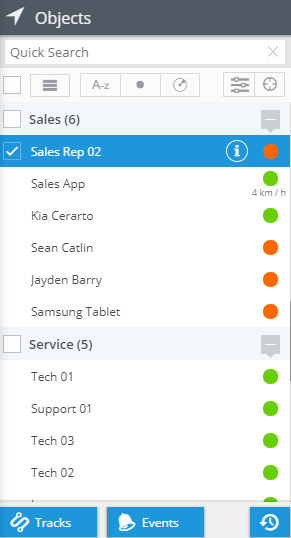

Groups. You can combine objects into groups, name these groups and assign them different colors. Group management can be done in the Devices app.
- Green: location is fixed, device is online
- Blue: location is not fixed (old), device is online
- Red: device is offline
- Grey: device is just registered, waiting for the first connection
Multiple object selecting. Allows to apply tools for several objects at once. For example, scale map automatically to view all selected object, view tracks of the selected objects.
List tools. Sort list by name, by status or by distance from the selected reference point on the map. Filter list by object name. View in groups or as plain list.
Map auto scale. If enabled, the map will scale automatically to fit all assets on the screen, even if the assets move.
Viewing preferences. Allows to chose viewing preferences for track labels, events on the map, traces and animation when assets are moving.
Related tools
There is a number of tools available when you select or click on the item in the object list.

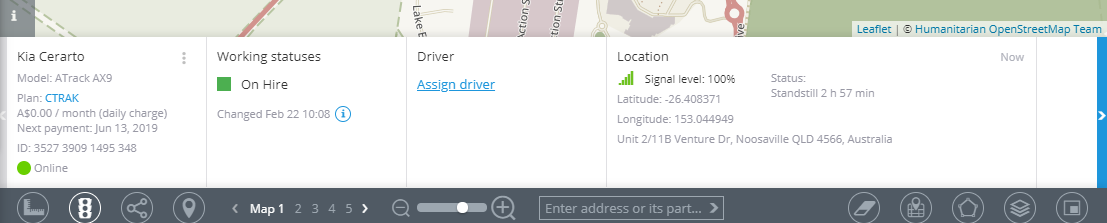

Asset View and Detailed Information
By clicking on the item in the object list or clicking the next to the desired object the map will focus on this object. Also in the bottom of the screen you can see the widget bar with additional information.

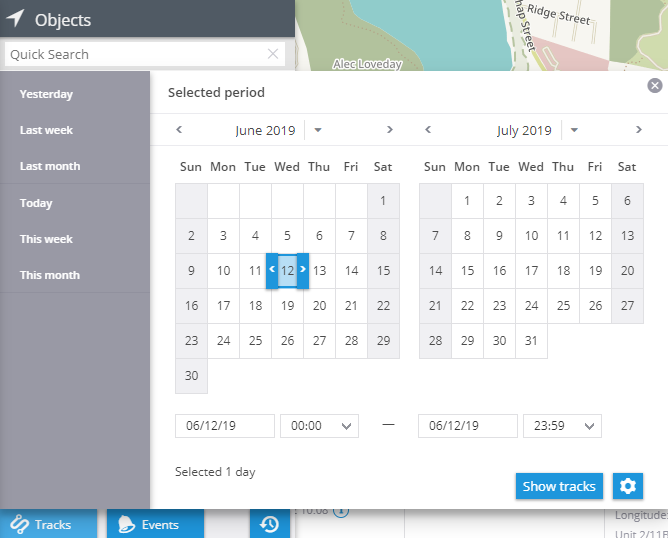

History View
When you select one or multiple items in the object list, three tool buttons appear below the list:
- Tracks. This tool allows to see tracks on the map
- Events. Show events on the map for the selected date/time range.
- Time Machine. Playback the history how the assets moved on a particular day, using the animation.

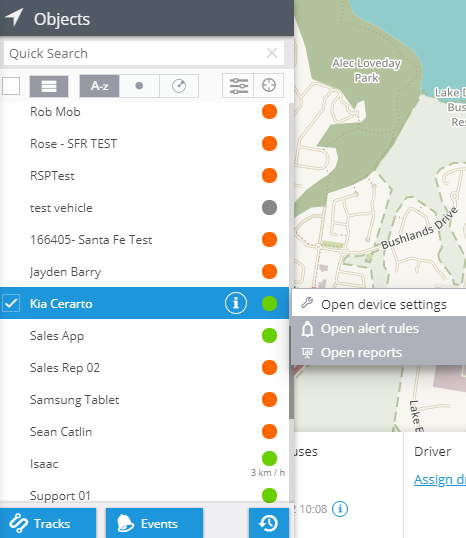

Context menu
With a right mouse click on the item in the object list you will get the context menu. It contains links to the tools from other Apps which you can apply to the selected object.
If you have any questions, please contact support on 1300 735 797 or email support@connectfleet.com.au
